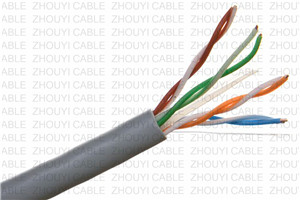

| Category | CAT5E |
|---|---|
| Specifications | 4 pairs |
| Conductor | 0.51mm |
| Material | Copper |
| Shield | uTP(Unshielded Twisted Pair) |
| color | grey/blue/white or as your requires |
| Jacket | PVC |
| Meter | 305M |
Conductor|Copper
AWG|24
Conductor Dia(mm)|0.51
Insulation|PE
Average Thickness(9±0.03mm)|0.20
Min Point Thickness|0.17
Insulation Dia(±0.03mm)|0.91
Twistiing lay length(mm)|30 undemeath
Cabling lay length(mm)|200 undemeath
Jacket|PVC
Average Thickness|0.5
Min Point Thickness|0.43
Qutor Dia(i1.0mm)|5.3
Rip Cord|YES
Weight Nom(kg/km)|32
Core Color|Blue-white/blue,Orange-white/orange
Green-white/green,Brown-white/brown
| Model NO. | 24AWG |
|---|---|
| Conductor Material | Copper |
| Material Shape | Round Wire |
| Wire Core Material | Bare Copper Wire |
| Rated Temperature | 60/75 |
| Length | 305m/610m/or as Require |
| Trademark | ZHOUYI OR OEM |
| Origin | Zhejiang |
| pplication | LAN Cable |
|---|---|
| Cover Material | PVC |
| Conductor Type | Solid |
| Voltage | 75V |
| Color of Insulation | Blue/White,Orange/White,Green/White,Brown/White |
| Color of Jaket | Black/Grey/Brown/as Requires |
| Transport Package | Color Box, Plastc or Wooden Drum, or as Requires |
| HS Code | 8544491100 |
Established in the year 2011, Jiaxing Zhouyi Wire&Cable Co., Ltd specialize in manufacturing and exporting of a wide range of wires&cables accessories. Located at in Qinshan Town, Haiyan County, Jiaxing City, the Company is about 100 km from Shanghai, Hangzhou, Ningbo, having convenient transportation condition.
Under advanced equipment and powerful techniques and perfect quality control system, our company has developed fast .Especially in Speaker Cable, Electrical Cable, Auto Car electrical wire, RCA Cable, Telephone Cable, Microphone Wire，TV Cable and Cable Sets.
Our products is sold fast to Southeast Asia, Middle East, South-America,Africa and the quality is well received by customer so we have long-term partners.
We take management principle of “Customer Foremost, High Quality is the Soul of an Enterprise” to build up our business.We are devoted to offer the best service to you.
We offer optional conductor materials including tinned copper, copper-clad aluminum, aluminum alloy, silver-plated, nickel-plated and gold-plated copper to meet different anti-corrosion, cost, high-temperature and high-frequency application demands.
Fill in the form below to get your exclusive free quote. We will respond promptly to your customized wire, cable and cable accessory requirements.
